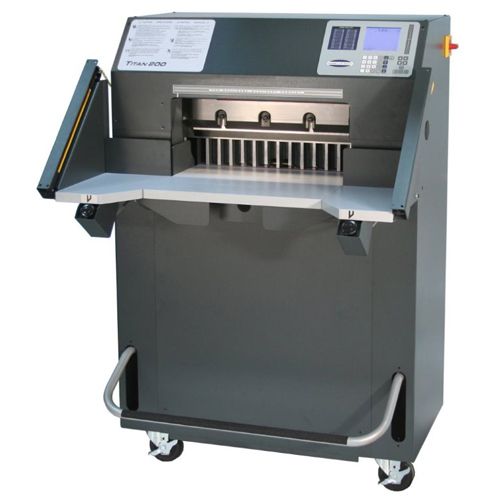

Challenge Titan 200 Cutter w/ TC Controls and Light Beams 1 /Each

The Challenge Titan 200 Cutter with Touch Screen Control is a 20" programmable cutter with fully hydraulic cutting and clamping. Its fully programmable controller offers intuitive operation and up to 9,801 total cut position storage. The Titan 200 is based on a solid cast iron and steel construction for maximum durability. UHMW gib surfaces, LED line lights, and a one-inch thick solid tool aluminum table require virtually no maintenance for years of trouble-free operation.

The optional electronic clamp pressure control minimizes waste. The Titan 200's self diagnostics and error indication walks the operator through any difficulties. This cutter meets the toughest safety standards in the industry today. Light-safety curtains, enclosed rear table, two-hand cut buttons, and knife safety latch contribute to the UL and CE certifications.

This Challenge Titan 200 Cutter w/ TC Controls and Light Beams is proudly manufactured in the U.S.A., giving assurance that you made the right decision.

Features:

• 20" Cutting Width, 3-1/4" Clamp Opening
• Fully hydraulic cutting and clamping
• Adjustable Clamp Pressure
• Mechanical Foot Pedal Clamping
• Solid cast iron and steel construction ensure years of trouble-free operation
• Solid 1-inch thick tool grade aluminum table offers the strong work surface required in production environments
• Bright red LED line light is easy to see and needs no future replacement
• Fully programmable controller offers intuitive operation and up to 9,801 total cut position storage
• Line-Light Cut Position Indicator
• Plexiglas Rear Table Safety Shield
• Heavy Duty Casters
• False Clamp Plate (optional)
• 12" x 19" Side Tables (optional)
• Menu-Driven LCD Screen
• Safety Devices: Light Beams
• LCD Digital Backgauge Position Indicator
• Electronic Clamp Pressure Control (optional)
• Alpha/Numeric Electronic Keypad
• Variable Mode Data Entry
• 99 Channel, 9,801 Total Cut Memory
• Push-Out Function
• Variable-Speed Pinpoint Backgauge Control
• Computer Diagnostics
• Light-safety curtains, enclosed rear table, two-hand cut buttons, and knife safety latch contribute to our UL and CE certifications.

The TC Control System Features:

• 10.5” Color Touch Screen control panel
• JDF and network capable hardware
• Faster backgauge positioning
• Electronic Clamp Pressure control
• USB port for simple thumb drive program entry
• Ability to receive .csv files making offline programming and memory storage simple
• Repeat and Loop commands streamline program entry
• Auto-programming features of sheet division and label cutting with animated graphics
• Programmable Clamp pressure per cut
• ANSI safety standard compliant and CE, UL and cUL Listed

Specifications:

• Maximum Cutting Width: 20" / 50.8cm
• Minimum Cut: (without false clamp plate) 1/2" / 13mm
• Minimum Cut: (with false clamp plate) 1-7/8" / 48mm
• Maximum Cut Depth: 20" / 50.8cm
• Clamp Opening: (without false clamp plate) 3-1/4" / 8cm
• Clamp Opening: (with false clamp plate) 3" / 7.6cm
• Clamping Method: Hydraulic and Manual

• Backgauge Control: Power

• DIMENSIONS:

  • Table Space: (in front of knife) 15-1/4" / 39cm
  • Table Space: (behind knife) 20" / 51cm
  • Overall Height: 53" / 135cm
  • Overall Width: 36" / 91cm
  • Overall Length: 49-5/8" / 126cm
  • Net Weight (approximate): 795 lbs / 361 kg
  • Shipping Weight (approximate): 920 lbs / 418 kg

• ELECTRICAL:

  • 1-1/2 H.P. 1 Phase, 60 Hz, AC
  • 230 Volts, 12 Amps (service size 15 Amps)
  • Requires receptacle type: NEMA 6-15R or 6-20R
  • U.L. Listed
