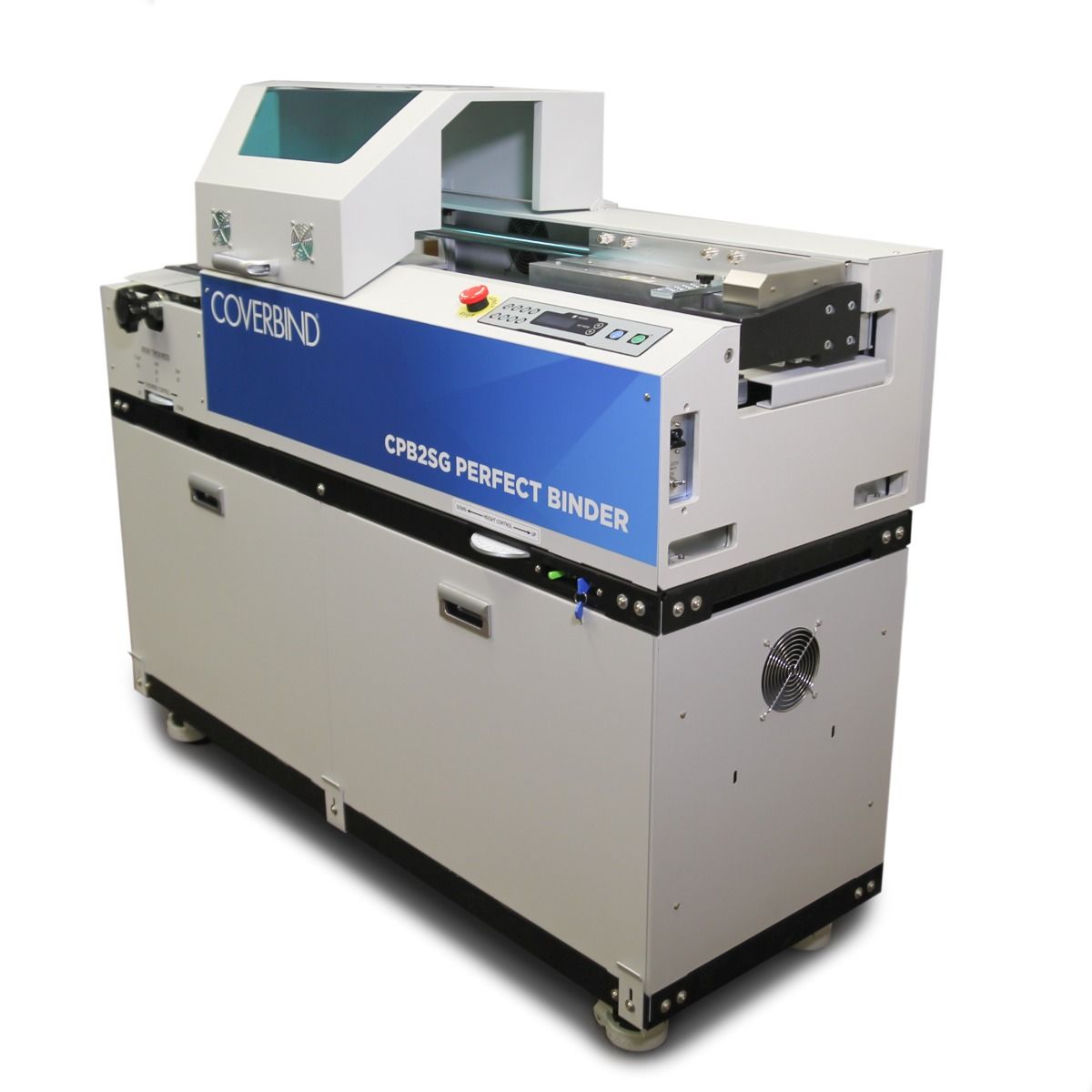

Coverbind CPB2SG Perfect Binding Machine and Accessories
- Bind books up to 2.25” (57mm) thick
- Binding speeds up to 360 books per hour
- Automated binding efficiency
- Ideal for in-plant and on-demand print shops
- Limited 90 Day Manufacturer Warranty
Description
Start binding premium soft cover books, novels, manuals, and more, on-demand with the Coverbind CPB2SG perfect binder with side gluing. Inexpensive to operate, this softcover binder can be used for short runs with just a couple of books or large jobs with thousands of books. Your print shop, in-plant printer, on-demand printer, or bindery can reach new levels of efficiency and convenience with the Coverbind CPB2SG perfect binding machine.
Achieve professionally bound perfect back books in a snap with perfect binding machines. Simple controls with an LCD display make for quick setup and operation. It can produce up to 300 Or 360 books per hour with customized adjustments for book height, block size, cover stock, and more. Even angled and spin position settings for versatility. This fully automated perfect binding system offers automatic/pneumatic clamping, specialized nipping, and essential glue coverage for a secure and flexible bind. You can pair it with standard adhesive or premium adhesive.
Key Features:
- Fast Binding. Bind up to 360 books per hour, depending on the book specifications and operator capabilities.
- Efficient Controls. A simple control panel lets you customize the machine to your specific job quickly.
- Automated Clamping. A pneumatic powered clamping mechanisms automatically adjusts to your book block thickness up to 2-1/4”.
- Optimum Glue Penetration. Roughing blade includes a serrated edge with 4 notching pins for maximum glue penetration and finished book strength.
- Specialized Nipping. Set the nipper to produce an exceptionally square-backed book with an adjustable height and dwell time up to 8 seconds.
- Stronger Bind. Side gluing on the front and rear of the book block makes for exceptional finishing.
- Saturated Glue Coverage. Twin gluing rollers saturate the spine with adhesive while a separate adjustable metering roller smooths the glue to the optimum thickness.


Specifications
Item # | 04TPTC5500SMS-GRP |
---|---|
Manufacturer | Coverbind |
Maximum Speed | Up to 360 books/hour |
Max Book Thickness | 2.25" / 57mm |
Compatible Supplies and Accessories | Coverbind Premium and Standard Perfect Bind Adhesive |
Max Cover Size | 13.4" x 30.75" / 34 x 78 cm |
Maximum Spine Length | 12.5" / 32cm |
Book Block Size | 12.5" x 8.7" / 32cm x 22cm |
Display | LCD Screen |
Clamp | Automatic/Pneumatic |
Roughing Blade | Milling and 2 Heavy Duty Notching Pins |
Rollers | 2 Glue, 1 Metering, Side Glue Tank |
Air Compressor | Air Compressor is Included |
Castors | Included on Stand (Optional Stand is Sold Separately) |
Machine Dimensions | 50” H x 33” W x 70-1/2” L |
Shipping Dimensions | 62” H x 30” W x 64” L |
Machine Weight | 685 lbs. |
Shipping Weight | 739 lbs. |
Electrical | 220V 60 Hz, 15 amps, single phase (plug not included) |
Videos
Coverbind CPB2SG Perfect Binding Machine Video
The pneumatic powered clamping mechanisms automatically adjusts to your book block thickness from two sheets of paper up to 2-1/4” thick. Both the clamp and nipping table are pneumatic and operate with the compressor that is included with the system.
The simple to use control... Read More
The pneumatic powered clamping mechanisms automatically adjusts to your book block thickness from two sheets of paper up to 2-1/4” thick. Both the clamp and nipping table are pneumatic and operate with the compressor that is included with the system.
The simple to use control panel and LCD display lets you customize the machine to your specific job quickly and the safety cover disables the machine when in the open position.
The CPB2SG is a production powerhouse able to bind up to 360 books per hour, depending on the book specifications and operator capabilities.
Offering heavy-duty notching pins, designed to mill deeper into the spine. There is an adjustment on the machine to change the depth of milling on the book block to facilitate the binding of problem stocks such as offset, coated, and books printed with oil or wax-based inks.
The CPB2SG system includes a vacuum waste removal system to eliminate dust created by the spine notching system. The dual glue application rollers make sure the glue is applied to all surfaces of the spine and the metering roller smooths out the glue to the desired thickness.
The CPB2SG includes side gluing rollers, normally found in more expensive systems, to assure secure binding. It also allows for the use of creased hinged covers.
The nipping table has an adjustable height and an adjustable dwell time of up to 3 seconds. The nipper adjustment knob allows the operator to increase or decrease the travel of the nipper to produce an exceptionally square-backed book.
There are 4 important sensors on the machine.
1. The book clamp sensor will prevent the book clamp from closing without a book block in the machine.
2. The cover sensor will prevent to book block moving across the gluing section and into the nipping table unless a cover is in place
3. The safety touch sensor on the top of the clamp, will automatically open the clamp if a hand is on the book clamp.
4. The safety cover sensor will not allow the system to run and will automatically stops the machine if the cover is raised.
The CPB2SG includes a stand that holds the compressor and vacuum system. The stand is on casters making it easy to move around the shop where needed or out of the way when not in use. The exit tray provides a staging area for cover stock and an area to stack books as they come out of the machine.
Accomplish swift, simple, and automated binding of your perfect bound books with the Coverbind CPB2SG. An ideal perfect binding solution for in-plant and on-demand print shops and binderies.
Reviews
Expert Reviews
Coverbind CPB2SG Perfect Binder Staff Review
The Coverbind CPB2SG Perfect Binder is a premium binding machine that sits at the top of my favorites list. It really gets the binding process done quickly and easily. It is not only one of the most affordable options in it's class, but it is inexpensive to operate for both short runs and large jobs.
The Best Things About the Coverbind CPB2SG Perfect Binder
Unlike some other perfect binding machines, the Coverbind perfect bind system is incredibly straightforward and doesn't have that ominous air about it that makes it seem unapproachable. While binding both thin and thick books it works efficiently and creates an exceptionally strong, straight, and quality bind. This means that it could be a great fit for both large print facilities and small print shops alike. With a speed of up to 360 books per hour, the Coverbind CPB2SG can handle nearly any volume workload.
The Coverbind CPB2SG Perfect Binder is mounted on a stand, which is on casters, as well as a safety cover which will stop the operation of the machine when lifted. More importantly, it includes a vacuum waste removal system, which allows for the use of even heavier duty notching pins, which prepare the spine for gluing. Another great feature is the thorough glue coverage. This is achieved with the glue metering roller, two spine application rollers, and side gluing rollers that ensure the strongest bind and complete glue coverage for a perfect binding machine.
- Pneumatic clamping & nipping that automatically adjusts to your book thickness
- Easy to use LCD display and control panel
- Powerful production capabilities of up to 360 books per hour
- Heavy duty notching pins for deeper milling
- An air compressor & vacuum waste removal is built into the stand
The Things You Should Consider Before Buying the Coverbind CPB2SG Perfect Binder
The Coverbind CPB2SG Perfect Binder is a robust binding machine that can handle many different types of books. However, one of the points to note is that this binding machine does not have the built-in space-saving of other tabletop binders. It comes with its own stand, which houses the vacuum collection system and compressor. This is on casters, making it easy to move around and out of the way. However, since it isn’t a tabletop version, it may not be ideal for smaller print shops with limited floor space available.
The Bottom Line — Is the CPB2SG Perfect Binder a Good Buy?
Overall, the Coverbind CPB2SG Perfect Binder is a great option for binding needs that range from minimal to extensive. The ability to bind small, medium and larger sizes gives this binding machine the flexibility that major plants and on-demand print shops need. Due to its size, smaller print shops may do well with the "little brother" system, the Coverbind CPB1 tabletop perfect binder system. However, if your print shop can accommodate the size, I recommend this perfect binder because it has many features that will make the binding process simple and hassle-free while also being priced competitively with less-powerful machines on the market.
If you have any questions or need help choosing the best perfect binding machine for your specific needs, please don't hesitate to contact us at 800-631-3572. We would love the opportunity to discuss your unique situation and help you find the ideal solution.
— — —
Our staff reviews are written by various experts across the company, with decades of experience not only in the industry itself but at Spiral. Our goal in these reviews is to give you an honest, hands-on look at our products, giving you unique insight and helping you make the best buying decision for you and your business.
Resources

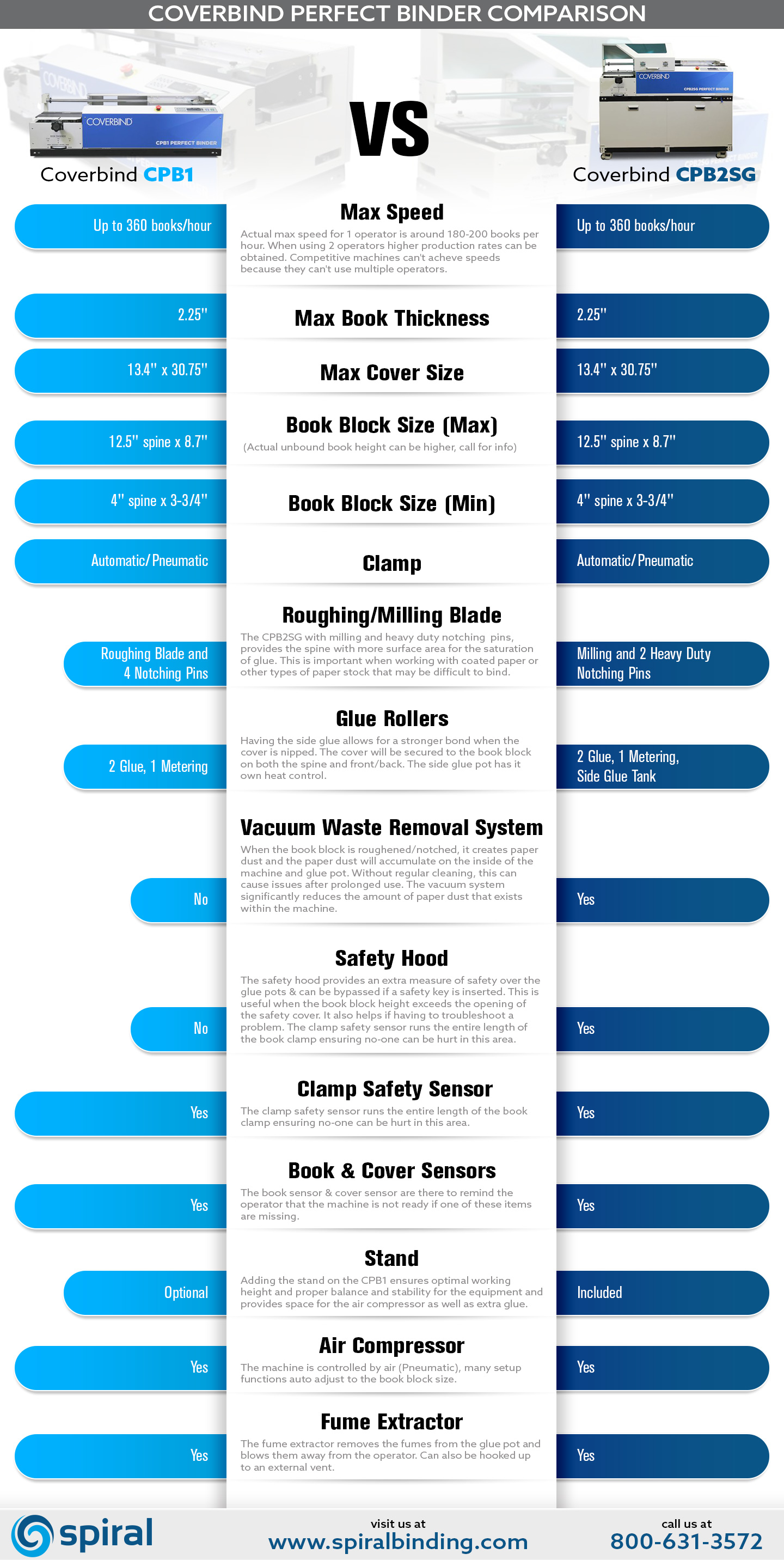

Features and Benefits
Feature | CPB1 | CPB2SG | Benefit |
---|---|---|---|
Max Speed | Up to 360 books/hour | Up to 360 books/hour | Double your production rate with multiple operators. With an actual spped of 180-200 books per hour and the capacity to accommodate multiple operators, production of up to 360 books per hour can be achieved. This speed is not possible in other competitive machines as they are designed for single operator. |
Max Book Thickness | 2.25" | 2.25" | |
Max Cover Size | 13.4" x 30.75" | 13.4" x 30.75" | |
Book Block Size (Max) | 12.5" spine x 8.7" | 12.5" spine x 8.7" | (Actual unbound book height can be higher, call for info) |
Book Block Size (Min) | 4" spine x 3-3/4" | 4" spine x 3-3/4" | |
Clamp | Automatic/Pneumatic | Automatic/Pneumatic | |
Roughing/Milling Blade | Roughing Blade and 4 Notching Pins | Milling and 2 Heavy Duty Notching Pins | Roughing/Milling Blade gives the spine more surface area for the glue to adhere on. Model CPB2SG is equipped with Roughing/Milling Blade. This procedure makes it easier when working with coated paper and other types of paper stock that need more glue saturation. |
Glue Rollers | 2 Glue, 1 Metering | 2 Glue, 1 Metering, Side Glue Tank | Glue rollers provide a foolproof bond. The CPB1 and CPB2SG all have 2 Glue Rollers and 1 Metering. Model CPB2SG have the Side Glue Tank. A stonger bond is made with the side gle when the cover is nipped. This creates strong adhesion of the cover to the book block on both the spine and front/back. A built in heat control ensure that the temperature is always optimal. |
Vacuum Waste Removal System | No | Yes | Having a Vacuum Waste Removal System helps keep the machine in optimal operating performance. The system collects dust that would otherwise end up inside the machine and glue. Without the vacuum system, paper dust produced from the roughening and notching process will accumulate and will cause future issues and damaged. |
Safety Hood | No | Yes | Protecting operators from accidents is the Safety Hood. This feature prevents access to the glue pots. It is only bypassed when a security key is inserted. The function is convenient when the book block height exceeds the opening of the safety cover. It also provides access in troubleshooting the machine. To make sure that no accidents happen, a clamp safety sensor runs the entire length of the clamp. |
Clamp Safety Sensor | Yes | Yes | Clamp Safety Sensors run the entire length of the book clamp to restrict access during operation. This prevent accidents that happend from contact with the binding parts. |
Book & Cover Sensors | Yes | Yes | The Book and Cover Sensor makes sure that outputs are always complete. The sensor alerts the operator when a book or cover is missing. The binder will not operate when one of these components is missing. |
Stand | Optional | Included | A stand for the CPB1 will optimize its function and productivity as it provides the perfect working height, proper balance, and stability. The stand will create a cohesive workstation as it provides space for the compressor and glue storage. |
Air Compressor | Yes | Yes | The binder takes advantage of Pneumatic control. It offers convenience and speed with its auto adjust functions for book block size. |
Fume Extractor | Yes | Yes | Create a smell and odor-free work place with the Fume Extractor. The extractor traps fumes from the glue pot and directs away from the operator. Hooking the extractor to an external vent keeps the fume out of the workplace for operator safety. |
Automatic Cover Creaser | No | No | The Automatic Cover Creaser eliminates the possibility of cracking in the folded site especially when workinth digitally printed media. This feature maintains the aesthetic of the print and elevates the quality of the final product. Having this built in feature eliminates the need for an additional process on a separate machine, saving you time and money. |
Creasing Bar | No | No | The Creasing Bar gives operators sevaral creasing depth options. It can be rotated in four directions to select the perfect crease depth for every unique project. |
Automatic Cover Feeder | No | No | Improving the workflow and operator convenience is the Automatic Cover Feeder. It utilizes embedded sensors to automatically feed the cover into position when the binder is ready. The sensors also detect double feeding and and missing covers, ensuring that every output is perfect and complete. |
