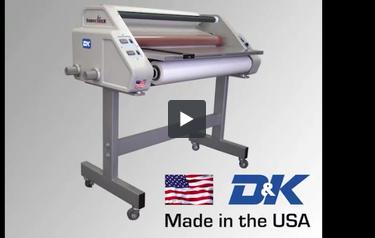

D&K EXP 42 Plus 42" Thermal Laminator w/ Stand 1 /Each

D&K EXP 42 Plus 42" Thermal Laminator w/ Stand 1 /Each
8568.750000 NewCondition InStock

D&K EXP 42 Plus 42" Thermal Laminator w/ Stand 1 /Each

Item #: 04DKEXP42P
Brand: D&K
or
-
+
Product Name Item Number Price Qty
Exit Trimmer Kit For EXP42P Laminator-factory install only 1 /Each 04DKEXP42PSLIT Request Quote
Foot Pedal for EXP42P /EXP62P/ Superkote Laminators 1 /Each 04DKEXP42PFP Request Quote

Description

The D&K EXP 42" Plus Wide Format Laminator is a heavy duty, industrial strength wide format laminating machine. It features variable speed, heated rollers, a release liner rewind, with a stand. It is designed for multi-purpose laminating and is ideal for wide format digital output. The EXP 42" Plus Laminator is a perfect fit for all of your print finishing needs, and much more.

Features:

  • EXP 42 Plus is a mounter, laminator, & encapsulator
  • Fast set up and easy operation
  • Roller lift for easy film loading
  • Optional in-line slitter for trimming during lamination
  • Variable roller pressure
  • Heavy duty stand with castors make unit easy to move around the shop and offers the ideal height for operator comfort.
  • Accepts low-melt, thermal and pressure sensitive films
  • Accommodates substrates up to 1/2" thick and rolls up to 8" diameter.
  • Ready and wait lights indicate when laminator has reached preset temperatures.
  • Independent upper and lower electronic temperature controls with LED display.
  • Spring loaded adjustable pressure on laminating and pull rollers for smooth and even lamination.
  • Optional footswitch allows hands free operation for guiding materials during lamination.
  • Auto-grip shafts for easy loading of film.
  • Designed for mounting and laminating low temp, thermal and pressure sensitive films.
  • Heated Rollers for a variety of films and scratch free graphics.
  • Heavy-duty forward / reverse variable speed motor.
  • Sturdy feed-back table with adjustable feed guide
  • Heavy-duty top grade silicone rubber rollers
  • Heavy duty chain and sprocket drive
  • Four high capacity forced air cooling fans.
  • Made in the USA

Available Options:

  • Foot Switch
  • Release Liner Take-up for PSA film
  • Slitter Kit

Specifications

Item # 04DKEXP42P
Manufacturer D&K
Manufacturer Item # EXP42+
Working Width 41"
Maximum Aperture 1/2"
Maximum Speed 0 to 10 feet/min
Roller Diameter 3"
Power 230V 60Hz 30 A 1Pz
Size 57" W x 19 1/4" H x 27 1/2" D (with feed tray, without stand)
Weight 205 lbs.
Shipping Weight / Size 420 lbs. / 72" x 40" x 38"
