MBM Triumph 7260 VRCut 28" Hydraulic Paper Cutter 1 /Each

MBM Triumph 7260 VRCut 28" Hydraulic Paper Cutter 1 /Each
31099.000000 NewCondition InStock

MBM Triumph 7260 VRCut 28" Hydraulic Paper Cutter 1 /Each

Item #: 04MBM7260
Brand: MBM
or
-
+

Description

The MBM Triumph 7260-VRCut 28" Hydraulic Programmable Paper Cutter is the most advanced paper cutter in the Triumph series, and one of the most advanced you can buy. Fully programmable for more convenience, this machine has a range of practical features. Apart from the hydraulic clamp drive, adjustable clamping pressure, and variable speed control, the Triumph 7260 VR also features an LED optical cutting line, a memory capacity of 99 jobs with 99 steps each, and a self-diagnostic system. Safety features include a blade changing system that can be completed without removing the covers, external blade depth adjustment, a transparent safety cover on the rear table, and a safety catch that securely locks the blade lever in the “Up” position. Premium quality and durable, the MBM Triumph 7260-VRCut 28" Hydraulic Programmable Paper Cutter has a stainless steel work surface, top quality German HSS blade, and a rugged build. The innovative VRCut software is also included.

Save more with the optional MBM Triumph 7260-VRCut Cutter Package. This package includes Triumph 7260-VRCut cutter, side tables, knife, and cutter sticks (6pk).

Features:

  • 28" Programmable cutter with hydraulic clamp, power back gauge, 7-inch touch pad control module, standard air tables (front and rear) and IR safety light beams.
  • VRCut is a groundbreaking software solution designed to automate the cutting workflow by promoting an efficient and error-free cutting process from start to finish. VRCut intelligently bridges the gap between pre-press and the finishing process, allowing operators of any experience level the ability to cut with confidence on select Triumph cutters.
  • Hydraulic clamp drive
  • Pre-clamping with a foot pedal operation
  • Clamp pressure is fully adjustable between 550 and 4,400 psi.
  • False clamp plate with optical indicator.
  • Electric back gauge drive with control module for easy programming.
  • Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch.
  • Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step).
  • Pre-programmed for standard paper sizes.
  • Memory keys for repeat cuts (manual) and quick setting of frequently needed measurements.
  • Automatic SET function for reference measurement and paper EJECT function with and without program mode.
  • DELETE and INSERT mode for correcting and modifying programs.
  • Automatic correction in case of back gauge displacement.
  • Push buttons for fast back gauge movement (forward and reverse).
  • Integrated calculator.
  • Self-diagnostic system with error indication on display.
  • Electric blade drive with solid steel carrier and adjustable guides.
  • Electronic back gauge control with variable speed control for manual back gauge setting.
  • Bright, LED optical cutting line.
  • Standard air tables (front and rear).
  • High quality, German steel HSS blade.
  • Precision swing cut blade movement.
  • All-metal construction.
  • Includes easy-access tool holder and paper blocking tool.
  • Optional side tables increase work surface.
  • UL and C UL approved.

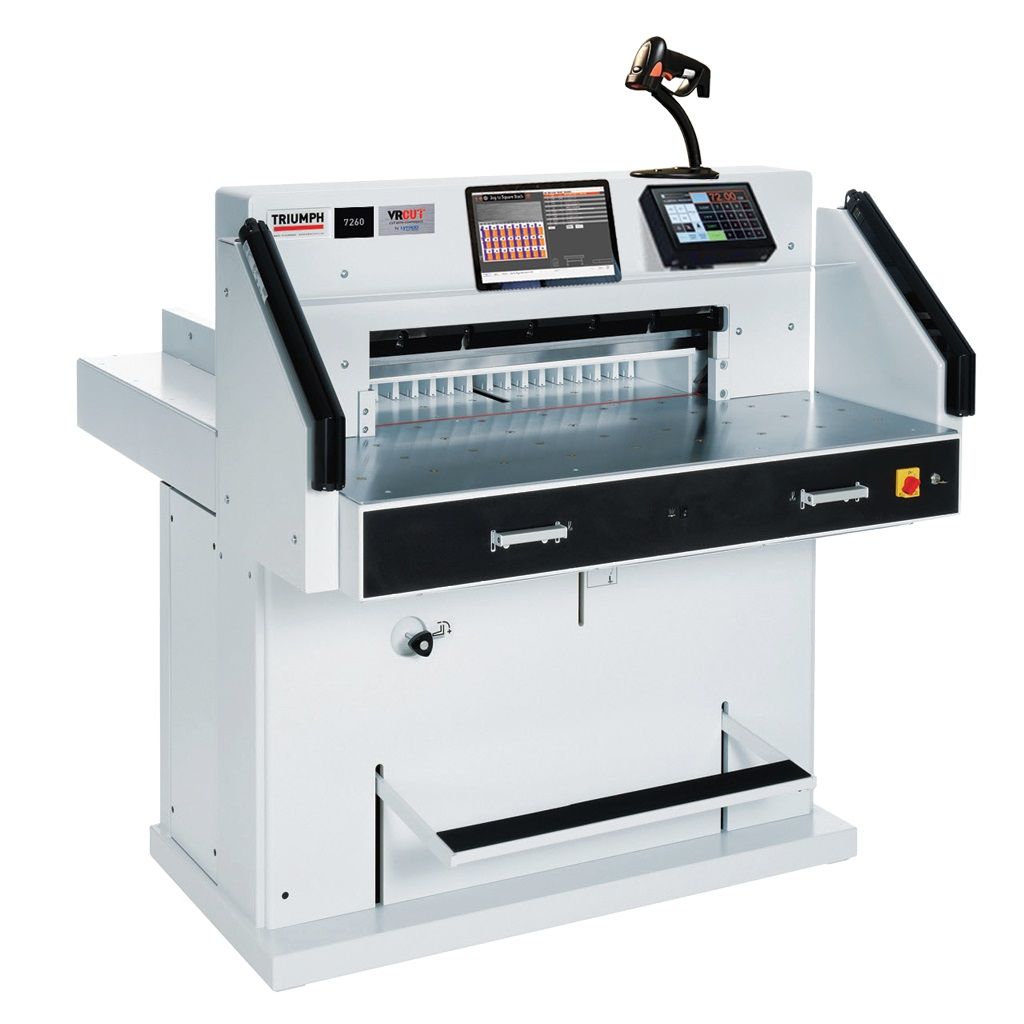

Comes with FREE VRCut Controller Hardware Kit:





After registering your VRCut license you have the option to order a complete VRCut Controller Hardware Kit at no cost (free shipping included within the United States). The VRCut Controller Hardware Kit comes with everything you need, including a touchscreen PC tablet with VRCut Controller license installed, a barcode scanner, mount and all of the required cabling. Open the box, set up the components, and you’re ready to go!

Comprehensive SCS™ Safety Package:

  • An IR light beam safety curtain on the front table
  • Patented EASY CUT electronic blade activation bars for true two-hand operation
  • Main switch and safety lock with key
  • 24 volt controls (low voltage)
  • Patented IDEAL safety drive
  • Automatic blade and clamp return from every position
  • Disc brake for instant blade stop
  • Blade changing device covers cutting edge of blade
  • Blade depth adjustment from outside of machine
  • Blade and cutting stick can be changed without removing covers.

Specifications

Item # 04MBM7260
Manufacturer MBM
Manufacturer Part Number CU0494V
Brand Name MBM
Operation Electric
Cutting Width 28"
Cutting Height 3"
Narrow Cut 3/4" (3-1/2" with false clamp)
Length Behind Blade 28"
Power Voltage 208/230 VAC, 50/60 HZ, 3-Phase
Dimensions 60-1/2" D x 51-3/8" W x 52-1/2" H (63" D, 82-1/2" W with side tables)
Shipping Weight (lbs) 1,534 (1,622 with side tables)
Shipping Information
This item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please contact us. Click here for full details.

Videos

VRCut: Controller Demo

Transcript: Speaker 1:
Today we're going to be demonstrating the VR Cut Controller. The VR Cut Controller will automatically guide the operator with a visual interface. To start the job, we're on a Triumph 5260. We click the start button and read the bar code on the job layout. The job layout was created in VR Cut Impose, and it automatically calls in the appropriate template. It gives the operator an option to call in the actual artwork. And that way you can actually see the-
VR Cut Controller:
Jog to s...
Read More
Speaker 1:
Today we're going to be demonstrating the VR Cut Controller. The VR Cut Controller will automatically guide the operator with a visual interface. To start the job, we're on a Triumph 5260. We click the start button and read the bar code on the job layout. The job layout was created in VR Cut Impose, and it automatically calls in the appropriate template. It gives the operator an option to call in the actual artwork. And that way you can actually see the-
VR Cut Controller:
Jog to squares down.
Speaker 1:
-artwork that you're heading. The backgauge moves to the first position.
VR Cut Controller:
Ready to cut step one.
Speaker 1:
The operator places the document into the cutter to ensure that it can cut. You'll see it will have the visual marker on the paper,-
VR Cut Controller:
Rotate 90 clockwise.
Speaker 1:
-as well as on the screen. Now they have the audio command. Visual commands to rotate the paper. Also, it alines with cut two- [crosstalk 00:01:02].
VR Cut Controller:
Scan two.
Speaker 1:
-on the paper and on the screen. You'll see lid trash can open to indicate that there's a scrap to throw away.
VR Cut Controller:
Rotate 90 clockwise.
Speaker 1:
We rotate the paper-
VR Cut Controller:
Ready to cut step three.
Speaker 1:
-throw away the scrap.
VR Cut Controller:
Ready to cut step four.
Speaker 1:
And you'll notice in this case that the table on the-
VR Cut Controller:
Ready to cut step five.
Speaker 1:
-screen has the-
VR Cut Controller:
Rotate 90 clockwise.
Speaker 1:
-has the work table. Now you take the page off the work table, rotate it, place it onto the cutter.
VR Cut Controller:
Ready to cut step six. Ready to cut step seven.
Speaker 1:
No rotation here. Now you'll notice the two pieces move over to-
VR Cut Controller:
Ready to cut step eight.
Speaker 1:
-the pallet indicating they are finished. This edge rips off the bleed edge.
VR Cut Controller:
Job complete.
Speaker 1:
And now the final two are push forward, and the job is complete.
