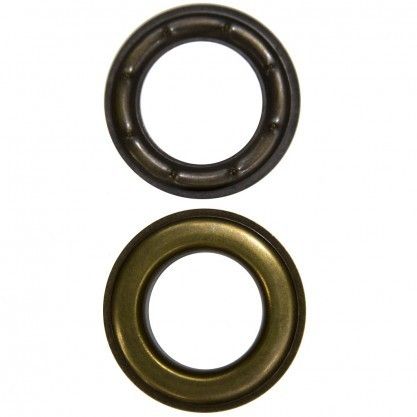

Antique Brass Grommets (Price per Pack)
- Choose from #XX00 1/8" through #12 1.5" Grommet Size
- Self-piercing for one-step grommeting
- Solid brass to prevent rusting
- Antique brass finish
Description
We offer high-quality grommets in a large variety of sizes and colors for your ClipShop grommet press machines. Grommets are a two-piece grommet and washer set that are pressed together using a grommet press machine, creating a bind. Most sizes are self-piercing, meaning they are sharp enough to punch through your material and set in the same step. If you are using larger grommets, or a thicker material, then the grommet setting process will be two-steps as you will need to punch the hole before setting the grommet. Use grommets for crafting, fashion design, creative book binding, home decor, fabric displays and so much more.
Our grommets have a solid reputation as one of the highest quality lines in the market. Made of solid brass, our grommets will not rust with exposure to outdoor elements. For most assertive fashion designs or for heavy duty industrial applications, our grommets and washers will get the job done for an attractive and durable finish.
Compatible ClipsShop Grommet Press Machines
Not all grommets are compatible with all machines. ClipsShop grommets are proprietary and only compatible with particular ClipsShop grommet presses. Check the below chart for compatibility and note that once grommets are ordered, opened, or used, they cannot be returned (return policy). Call (800)631-3572 if you have any questions.
Die Size | CSHAP-1 | CSTEP-1 | CSTEP-2 | CSTON-1 | CSBUR-1 | CSTIDY-41 | CSPIC-2 | CSPIC-3 |
---|---|---|---|---|---|---|---|---|
#XX00 (1/8") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
#X00 (11/64") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
#00 (3/16") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
#0 (1/4") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
#1 (5/16") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
#2 (3/8") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
#3 (7/16") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
#4 (1/2") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
#5.5 (11/16") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
#7.5 (1") | ✓ | ✓ | ✓ | |||||
#8.5 (1 ⅛") | ✓ | ✓ | ✓ | |||||
#12 (1 ½") | ✓ | ✓ | ✓ |
Parts of a Grommet
Understanding the different components of a grommet will help you to better understand the various dimensions and sizing standards, which ultimately lets you design your products better and find a more perfected grommet size for your specific needs. Check the diagram in the photos to see the different parts labeled on a drawing of a grommet, and compare it to the below sizing chart to see the dimensions for each part.
Size | Grommet | Washer | |||||
Flange Diameter | Hole Size | Overall Length | Neck Length | Flange Diameter | Inside Diameter | Thickness (with form) | |
#XX00 (1/8") | 0.28" (7mm) | 0.125" (3.4mm) | 0.16" (4.1mm) | 0.13" (3.4mm) | 0.31" (8mm) | 0.18" (4.5mm) | 0.03" (0.7mm) |
#X00 (11/64") | 0.33" (8.5mm) | 0.17" (4.4mm) | 0.2" (5.2mm) | 0.17" (4.3mm) | 0.33" (8.5mm) | 0.2" (5.2mm) | 0.03" (0.8mm) |
#00 (3/16") | 0.37" (9.4mm) | 0.1875" (5mm) | 0.2" (5.2mm) | 0.17" (4.3mm) | 0.38" (9.6mm) | 0.23" (5.8mm) | 0.04" (0.9mm) |
#0 (1/4") | 0.45" (11.5mm) | 0.25" (5.8mm) | 0.22" (5.5mm) | 0.18" (4.5mm) | 0.45" (11.5mm) | 0.27" (6.8mm) | 0.04" (1mm) |
#1 (5/16") | 0.59" (15mm) | 0.3125" (8mm) | 0.24" (6mm) | 0.2" (5.1mm) | 0.59" (15mm) | 0.37" (9.4mm) | 0.04" (1mm) |
#2 (3/8") | 0.75" (19mm) | 0.375" (9.4mm) | 0.23" (5.9mm) | 0.19" (4.9mm) | 0.74" (18.8mm) | 0.42" (10.6mm) | 0.04" (1.1mm) |
#2 LN (3/8") "Long Neck" |
0.75" (19mm) | 0.375" (9.4mm) | 0.23" (5.9mm) | 0.35" (9mm) | 0.31" (7.8mm) | 0.42" (10.6mm) | 0.04" (1.1mm) |
#3 (7/16") | 0.96" (24.5mm) | 0.4375" (11.6mm) | 0.23" (5.9mm) | 0.18" (4.6mm) | 0.96" (24.5mm) | 0.53" (13.5mm) | 0.06" (1.6mm) |
#3 LN (7/16") "Long Neck" |
0.96" (24.5mm) | 0.4375" (11.6mm) | 0.31" (7.9mm) | 0.26" (6.7mm) | 0.96" (24.5mm) | 0.53" (13.5mm) | 0.06" (1.6mm) |
#4 (1/2") | 1.04" (26.3mm) | 0.5" (12.7mm) | 0.24" (6mm) | 0.18" (4.6mm) | 1.04" (26.3mm) | 0.57" (14.5mm) | 0.06" (1.5mm) |
#5.5 (11/16") | 1.12" (28.5mm) | 0.6875" (16.7mm) | 0.27" (6.8mm) | 0.2" (5.2mm) | 1.1" (28mm) | 0.75" (19mm) | 0.05" (1.2mm) |
#7.5 (1") | 1.73" (44mm) | 1" (25mm) | 0.39" (9.8mm) | 0.32" (8.2mm) | 1.73" (44mm) | 1.03" (26.2mm) | 0.08" (2.1mm) |
#8.5 (1 ⅛") | 1.89" (48mm) | 1.125" (28mm) | 0.41" (10.3mm) | 0.32" (8.2mm) | 1.89" (48mm) | 1.18" (30mm) | 0.07" (1.7mm) |
#12 (1 ½") | 2.46" (62.6mm) | 1.5" (40mm) | 0.48" (12.2mm) | 0.42" (10.6mm) | 2.46" (62.4mm) | 1.68" (42.7mm) | 0.06" (1.6mm) |
Specifications
Item # | GROMMETSAB-GRP |
---|---|
Manufacturer | ClipsShop |
Manufacturer Part Number | GROMMETSAB GRP |
Compatible Equipment | Varies Depending on Grommet Check the Compatibility Chart in the Product Description |
Material | Solid Brass |
Product Type | Grommets |
Self-Piercing | Yes [Sizes #XX00 to #5.5] No [Sizes #7.5 to #12] |
