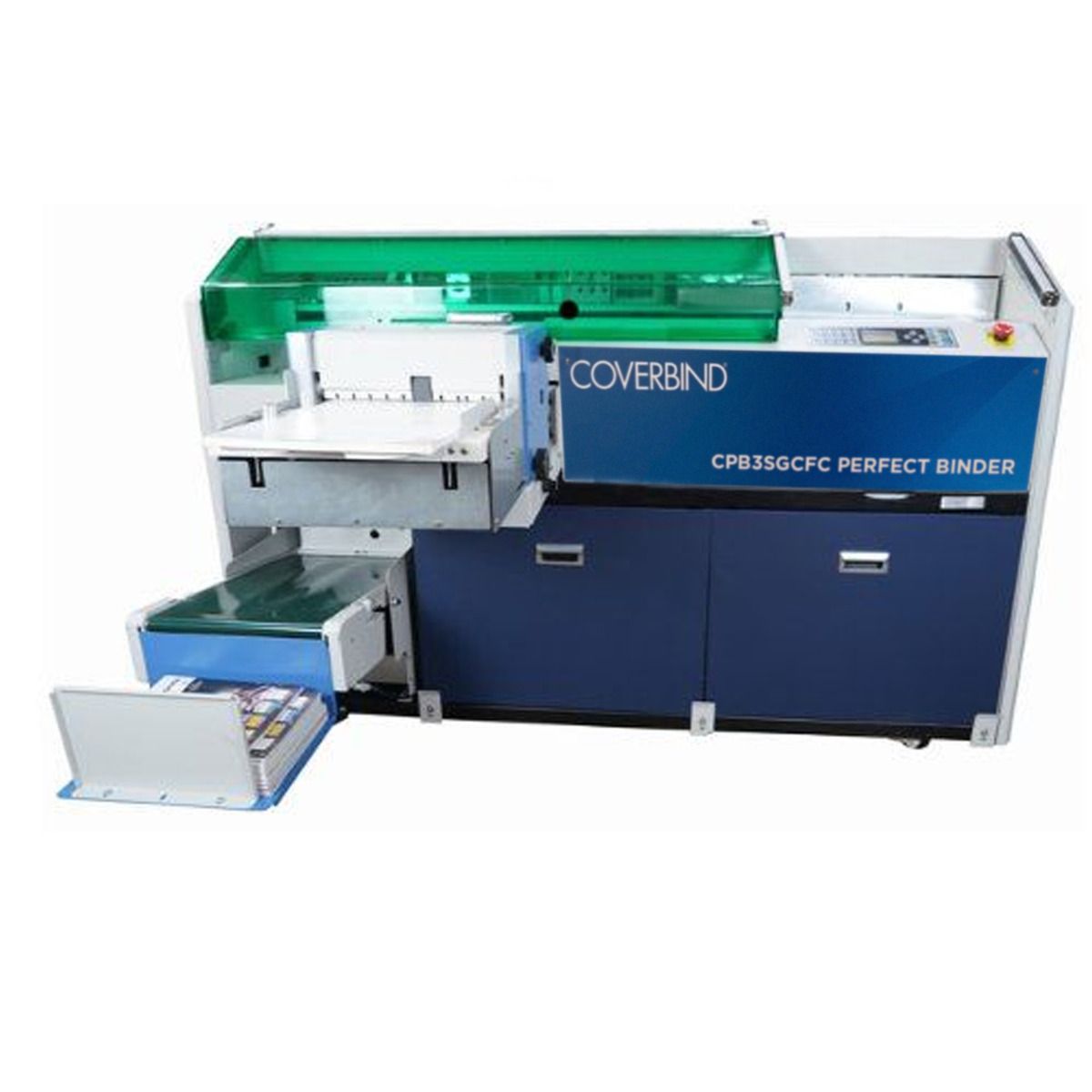

Coverbind CPB3SGCFC Perfect Binder with Side Gluing, Cover Feeder and Creaser

Item #: 04TPTC5700C

Brand: Coverbind

Skip to the beginning of the images gallery

Description

Bookbinding has never been easier with the Coverbind CPB3SGCFC Perfect Binder with Side Gluing, Cover Feeder, and Creaser. Its functional design makes it ideal for medium to large volume binding, and its simple operation is an added bonus. The machine is equipped with an automatic cover feeder with creaser and a vertical stacker to increase productivity. The two separate glue tanks and rollers evenly apply adhesive to the main cover and the spine of the book. Adjust the book’s thickness by simply turning the lever dial to the right to angle the book or to the left to round it. By lifting the cover and adjusting it up and down, the spine position of the book can also be adjusted.The scrapping and milling system on this binding machine ensures that coated, oil-infused, and UV coated materials adhere. It also has a vacuum system that collects dust and other debris after the book spine is cut, keeping your machine and workspace clean. This machine stacks completed books vertically in a loading box for the convenience of the operator.

Features:

Fast Binding. Bind up to 360 books per hour, depending on the book specifications and operator capabilities.
Efficient Controls. A simple control panel lets you customize the machine to your specific job quickly.
Automated Clamping. A pneumatic powered clamping mechanisms automatically adjusts to your book block thickness up to 2-1/4”.
Optimum Glue Penetration. Roughing blade includes a serrated edge with 4 notching pins for maximum glue penetration and finished book strength.
Specialized Nipping. Set the nipper to produce an exceptionally square-backed book with an adjustable height and dwell time up to 8 seconds.
Stronger Bind. Side gluing on the front and rear of the book block makes for exceptional finishing.
Saturated Glue Coverage. Twin gluing rollers saturate the spine with adhesive while a separate adjustable metering roller smooths the glue to the optimum thickness.

Specifications

Item #	04TPTC5700C
Manufacturer	Coverbind
Manufacturer Item #	TC-5700C
Maximum Speed	Up to 360 books/hour
Max Book Thickness	2.25" / 57.15mm
Compatible Supplies and Accessories	Coverbind Premium and Standard Perfect Bind Adhesive
Max Cover Size	13.4" x 30.75" / 34 x 78 cm
Maximum Spine Length	12.5" / 32cm
Book Block Size	12.5" x 8.7" / 32cm x 22cm
Display	LCD Screen
Clamp	Automatic/Pneumatic
Roughing Blade	Milling and 2 Heavy Duty Notching Pins
Rollers	2 Glue, 1 Metering, Side Glue Tank
Air Compressor	Air Compressor is Included
Castors	Included
Machine Dimensions	68” W x 75” L x 49” H
Shipping Dimensions	45” H x 83” W x 56” L
Shipping Weight	1148 lbs.
Castors	Included on Stand (Optional Stand is Sold Separately)
Electrical	220V 60 Hz, 15 amps, single phase (plug not included)

Reviews

Write Your Own Review

You're reviewing:Coverbind CPB3SGCFC Perfect Binder with Side Gluing, Cover Feeder and Creaser

Your Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

Resources

Coverbind CPB3SGCFC Spec Sheet Download

Features and Benefits

Feature	CPB2SGP	CPB2SG	CPB3GCFC	Benefit
Max Speed	Up to 360 books/hour	Up to 360 books/hour	Up to 360 books/hour	Cycle speed is dependent on operator capabilities.
Max Book Thickness	2.25"	2.25"	1.750"
Max Cover Size	13.4" x 30.75"	13.4" x 30.75"	13.4" x 30.75"	All machines have same Max size.
Book Block Size (Max)	12.5" spine x 8.7"	12.5" spine x 8.7"	12.5" spine x 8.7"	(Actual unbound book height can be higher, call for info)
Book Block Size (Min)	4" spine x 3-3/4"	4" spine x 3-3/4"	4" spine x 3-3/4"	All machines have same Min size.
Clamp	Automatic/Pneumatic	Automatic/Pneumatic	Automatic/Pneumatic	All have Automatic Clamp.
Roughing/Milling Blade	Milling and 2 Heavy Duty Notching Pins	Milling and 2 Heavy Duty Notching Pins	Milling and 2 Heavy Duty Notching Pins	Roughing/Milling Blade gives the spine more surface area for the glue to adhere on. Model CPB2SG, CPB2GP, and CPB3GCFC are equipped with Roughing/Milling Blade. This procedure makes it easier when working with coated paper and other types of paper stock that need more glue saturation.
Glue Rollers	2 Glue, 1 Metering PUR, 1 Side Glue Tank EVA	2 Glue, 1 Metering, Side Glue Tank	2 Glue, 1 Metering, Side Glue Tank	Glue rollers provide a foolproof bond from the 2 Glue Rollers and 1 Metering Roller. All models have the Side Glue Tank with 2 applicator rollers. A stonger bond is made with the side glue when the cover is nipped. This creates strong adhesion of the cover to the book block on both the spine and front/back. A built in heat control ensure that the temperature is always optimal.
Vacuum Waste Removal System	Yes	Yes	Yes	Having a Vacuum Waste Removal System helps keep the machine in optimal operating performance. The system collects dust that would otherwise end up inside the machine and glue. Without the vacuum system, paper dust produced from the roughening and notching process will accumulate and will cause future issues and damaged.
Safety Hood	Yes with fans to vent the PUR vapor.	Yes	Yes	Protecting operators from accidents is the Safety Hood. This feature prevents access to the glue pots. It is only bypassed when a security key is inserted. The function is convenient when the book block height exceeds the opening of the safety cover. It also provides access in troubleshooting the machine. To make sure that no accidents happen, a clamp safety sensor runs the entire length of the clamp.
Clamp Safety Sensor	Yes	Yes	Yes	Clamp Safety Sensors run the entire length of the book clamp to restrict access during operation. This prevent accidents that happend from contact with the binding parts.
Book & Cover Sensors	Yes	Yes	Yes	The Book and Cover Sensor makes sure that outputs are always complete. The sensor alerts the operator when a book or cover is missing. The binder will not operate when one of these components is missing.
Stand	Included	Included	Included	All machines come with stand to optimize its function and productivity as it provides the perfect working height, proper balance, and stability. The stand will create a cohesive workstation as it provides space for the compressor and glue storage.
Air Compressor	Yes	Yes	Yes	The binder takes advantage of Pneumatic control. It offers convenience and speed with its auto adjust functions for book block size. Eash machine comes with Quite Noise Compressor.
Fume Extractor	Yes	Yes (Avaiable)	Yes (Avaiable)	Creates a smell and odor-free work place with the Fume Extractor. The extractor traps fumes from the glue pot and directs away from the operator. Hooking the extractor to an external vent keeps the fume out of the workplace for operator safety.
Automatic Cover Creaser	No	No	Yes	The Automatic Cover Creaser eliminates the possibility of cracking in the folded site especially when working with digitally printed media. This feature maintains the aesthetic of the print and elevates the quality of the final product. Having this built in feature eliminates the need for an additional process on a separate machine, saving you time and money.
Creasing Bar	No	No	Yes	The Creasing Bar gives operators sevaral creasing depth options. It can be rotated in four directions to select the perfect crease depth for every unique project.
Automatic Cover Feeder	No	No	Yes	Improving the workflow and operator convenience is the Automatic Cover Feeder. It utilizes embedded sensors to automatically feed the cover into position when the binder is ready. The sensors also detect double feeding and and missing covers, ensuring that every output is perfect and complete.
Main Differences	PUR Glue	EVA Glue	EVA Glue	We offer Perfect Binders that utilize EVA or PUR glue. EVA glue is reusable, dries quickly and can be used on many different paper types. The glue also has a longer self life and can be reheated. PUR has a much greater bond to the paper, about 50%. It also has a greater stability in hot or cold temperatures like some EVA glues do. It is fully resistent to print ink and coated paper stock. PUR has a very short shelf life and unused glue must be vaccuum sealed for storage. Left over glue in pot can not be reheated/reused. PUR is more flexable that EVA but takes longer to cure. Each glue has it place in making Perfect Bind Books.
